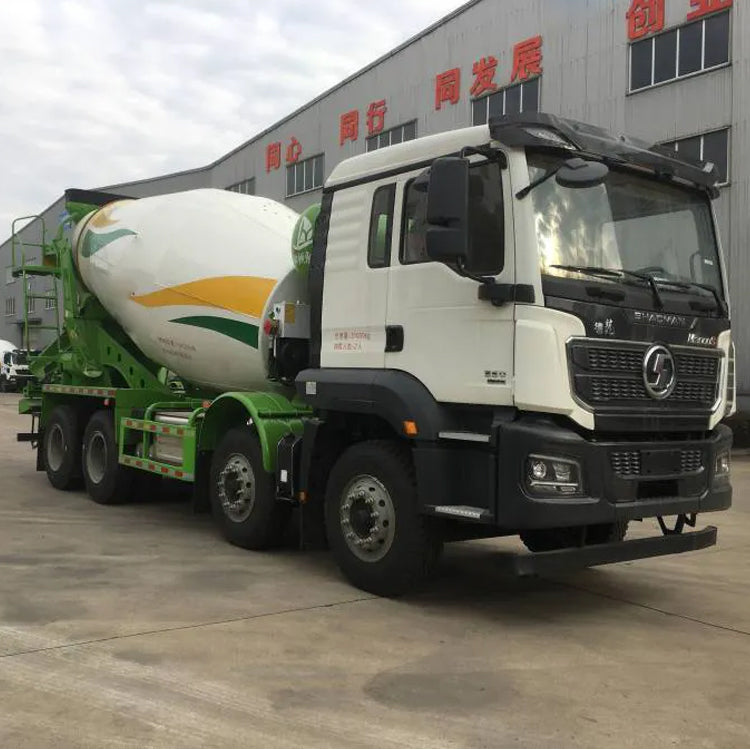

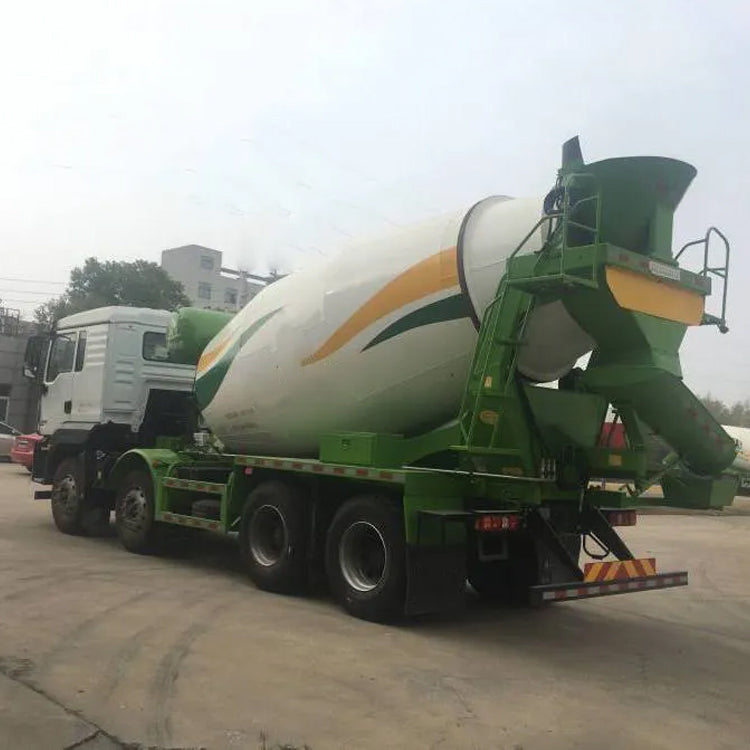

Concrete mixer truck is the fist product of CLW GROUP with a long history of manufacturing. The truck has compact structure design, advanced technology, convenient operation, excellent performance, beautiful and generous appearance, elaborate surface paint spraying, and the ability to transport a variety of collapse degrees and grades. This series of concrete mixer truck is a special vehicle to load, unload and transport concrete by adding a force extractor, reducer, hydraulic pump and hydraulic motor system and operating system to the second class chassis. Optional imported hydraulic parts can be installed to meet the needs of transporting different quality of concrete. The tank material can be selected from carbon steel, opaque steel, manganese steel, etc. to meet the needs of transporting different concrete.
Model: | ZZ1257N3847 | Volume: | 12cbm |
Total Weight: | 31000kg | Curbe Weight: | 13650kg |
Size of Outter: | 10180X2550X3990(mm) |
Drive style: |
8x4 |
WheelBase: | 1800+3000+1400mm | Tire Size: | 11.00R20 |
Transmission: | 10-Speed | Tire Number: | 12 |
Maximum speed (km/h): | 90 |
Brake System: | Air Brake |
Fuel Type: | Diesel | Emission Standard: | Euro 2 |
Engine Model: | WP8.350E61 | Power: |
350HP |
Displacement: | 7800ml |
Standard Equipments: |
Concrete mixer truck is mainly composed of automobile chassis, tank assembly, oil pump, oil motor, reducer radiator and pipe network system and transmission device, etc. |
