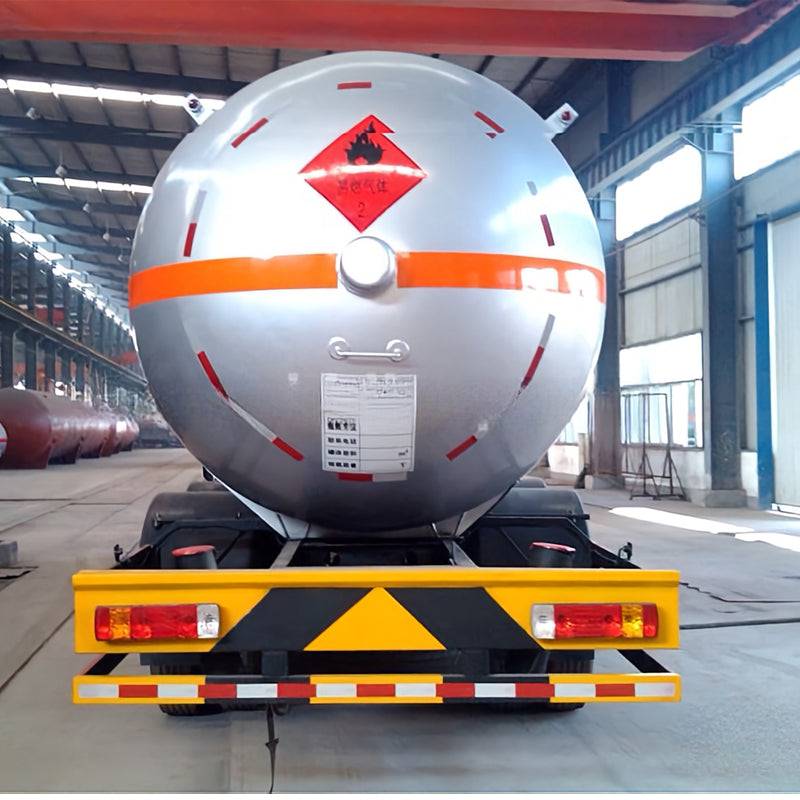

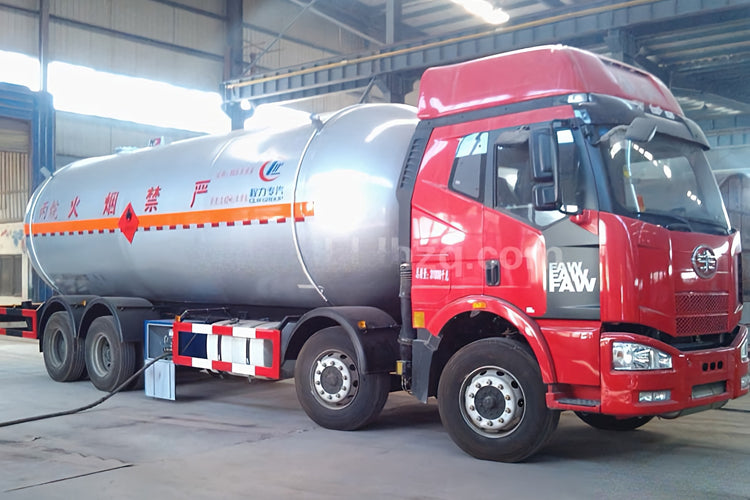

LPG tank; this transporter transports liquefied gas with maximum working pressure greater than or equal to 0.1MPa, design temperature not greater than +50℃, and is a car tanker with steel body. According to the different loading materials, it can be divided into: propane truck, propylene truck, dimethyl ether truck, liquid ammonia truck, methylamine truck, acetaldehyde truck, etc. According to the different roles of process and loading volume, it can be divided into: liquefied gas transport truck, liquefied gas transport semi-trailer, liquefied gas storage tank. Among them, liquefied gas storage tanks can be designed into two kinds: underground storage tanks and above-ground storage tanks
Our company produces liquefied gas transporters, liquefied gas tankers, LPG transporters, liquefied gas storage tanks, the tank body is made of high quality materials, fully sealed and welded, the weld seam is 100% ray detection and 100% magnetic particle detection, with high strength, large loading capacity; no secondary pollution, beautiful appearance, fast working speed, easy operation, stable performance, safe and reliable, long service life, etc.
Our company produces liquefied gas transporters, liquefied gas tankers, LPG transporters, liquefied gas storage tanks, the tank body is made of high quality materials, fully sealed and welded, the weld seam is 100% ray detection and 100% magnetic particle detection, with high strength, large loading capacity; no secondary pollution, beautiful appearance, fast working speed, easy operation, stable performance, safe and reliable, long service life, etc.
Model: | CLW5320GYQJ6 | Volume: | 36000L |
Total Weight: | 32000kg | Curb Weight: | 15624kg |
Size of Outter: | 11750*2550*3715(mm) | Suction Pump: | |
WheelBase: | 1900+4500+1350mm | Tire Size: | 12.00R22.5 |
Transmission: | CA10TA130M | Tire Number: | 10+1 |
Front/Rear Axle: | 435 Punch Dry Bridge | Brake System: | Air Brake |
Fuel Type: | Diesel | Emission Standard: | Euro 6 |
Engine Model: | CA6DK1-32E61 |
Power: | 239kw/325HP |
Displacement: | 7146ml |
