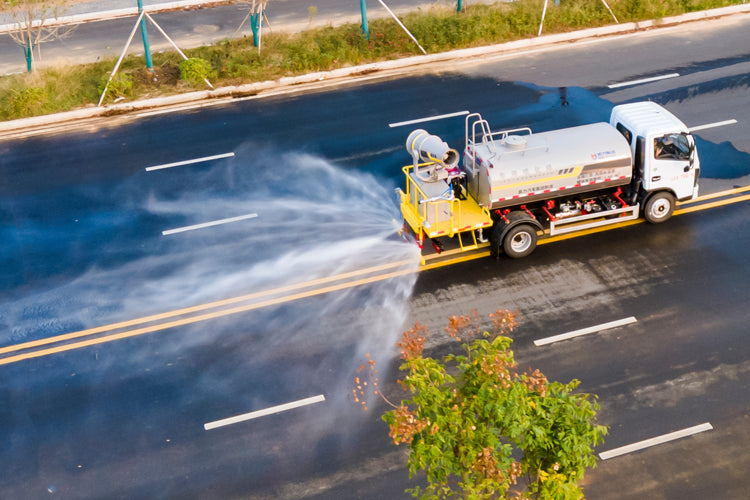

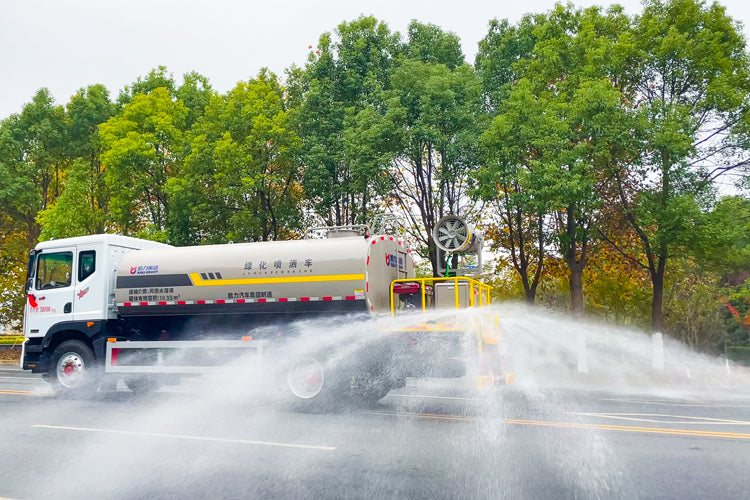

Dongfeng dust sprinkler truck : front flushing, rear sprinkler, side sprinkler, rear-mounted work platform, equipped with high-pressure water cannon (360 ° rotation, adjustable for column, maximum range of 35 meters, adjustable for fog, maximum range of 15 meters (adjustable for straight, heavy rain, medium rain, light rain, fine rain), equipped with high-quality high-power special sprinkler pump, pickup, debris filter, national standard general 65 type firefighting interface (can be added through fire hydrant to add water), 2 water distribution wire rubber hose. The water pump, power receiver, ball valve and strainer are all national standard products. The main pipe is thickened, the flange gasket and flange plate are thickened, and the large-diameter ball valve has forward strokes for excellent performance, reliable operation, high efficiency and high flow rate. The rear-mounted fog cannon can effectively suppress haze and dust.
Sprinkler truck suitable for various road cleaning; Greening trees, green belts, and lawns; The construction of roads, factories, mines, and enterprises, as well as the cleaning of high-altitude buildings.
Model: |
CLW5072GPSW3 |
Volume: | 5000L |
Total Weight: |
7360kg |
Curbe Weight: |
3800kg |
Size of Outter: | 6300*2050*2700(mm) |
Sprinkler pump: |
40/50 |
WheelBase: | 3300mm | Tire Size: | 7.00R16 |
Transmission: | 5-Speed | Tire Number: | 6+1 |
Front/Rear Axle: | 1.8T/3.5T | Brake System: | Air Brake |
Fuel Type: | Diesel | Emission Standard: | Euro 3 |
Engine Model: |
CY4100Q |
Power: |
60kw/82HP |
Displacement: | 3700ml |
Fog gun |
25-30m |
Standard Equipments: |
Dongfeng 4X2 12000L dust sprinkler truck the high-pressure water gun on the platform can rotate (360 °), equipped with high-quality high-power special spray pump, brand power take-off, debris filter screen, fire interface, gravity ball valve system, and 2 water diversion steel hose. Installing a fog gun at the rear |
