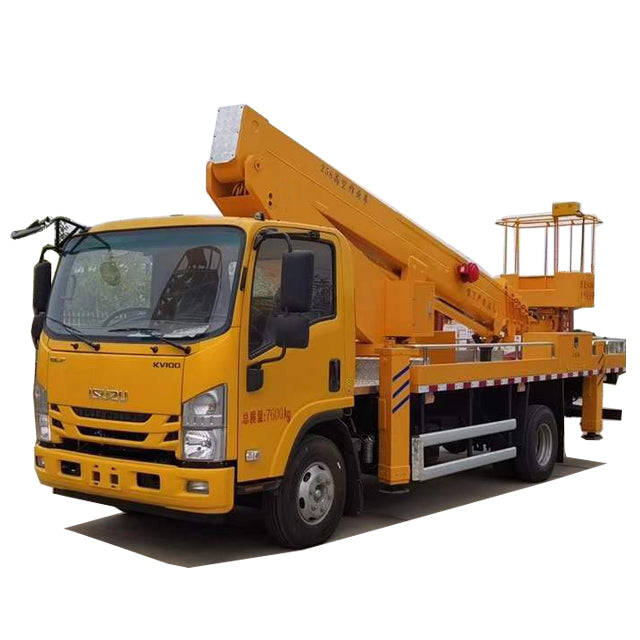

Isuzu 18-25 meters 4 x2 high working platform truck
Isuzu 18-25 meters 4 x2 high working platform truck
High-altitude operation vehicle can cross obstacles for high-altitude operation, platform lifting to any position, can be walking while working, compact structure, flexible steering, the width of the site can ensure that the equipment into the narrow channel and crowded work area, standby power device, can operate the working platform reset, convenient transportation mode, Aerial work vehicle can be pulled to any place, easy to identify the operation panel, Multiple mechanical, electrical and hydraulic safety protection, advanced hydraulic electrical integration system.High-altitude working platform truck Widely used in municipal construction, electricity, street lighting, advertising, photography, communication, landscape, transportation, mining, wharf and so on.
|
Model : |
QL1070A6HAY |
Meter count: | 25 |
| Total Weight: | 4495kg | Curbe Weight: | 4365kg |
| Size of Outter: | 5998*2080*3100(mm) | Number of axes: | two |
| WheelBase: | 3360mm | Tire Size: | 7.00R16 |
| Transmission: | 5-Speed | Tire Number: | 6 |
| Front/Rear Axle: | 2T/4-4.8T | Brake System: | Air Brake |
| Fuel Type: | Diesel | Emission Standard: | Euro 5 |
| Engine Model: | 4KH1CN5LS | Power: | 72kw/98HP |
| Displacement: | 2999ml |
Maximum speed |
98 km |
| Standard Equipments: |
|
High-altitude operation vehicle have Five sections of hexagonal working arm, synchronous telescopic.The working basket can carry 200 kg.Support leg front V after H type, can be adjusted separately.Arm can the two-way 360° continuous rotation, the basket 360° rotation. |
