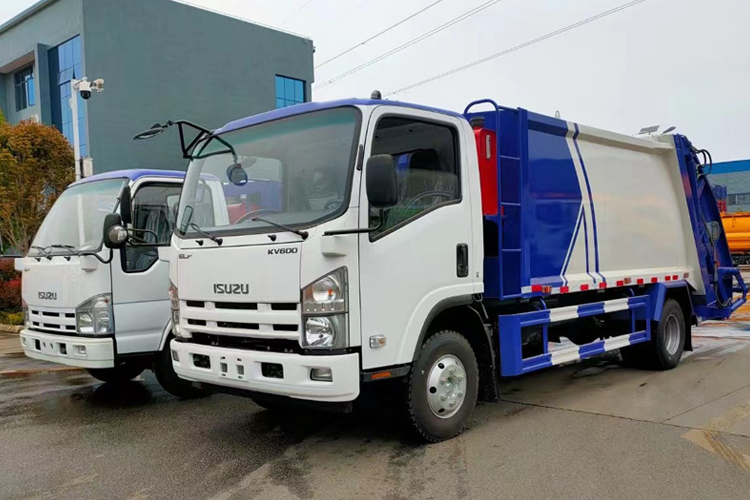

ISUZU 4*2 5000L-8000L Compressed garbage truck
ISUZU 4*2 5000L-8000L Compressed garbage truck
The compressed garbage truck has been repeatedly digested and absorbed the advanced technology at home and abroad, based on the adoption of domestic first-class brand hydraulic and electrical parts, the new generation of sanitation equipment developed and designed by itself, so that the product performance reaches the domestic first-class level. This compressed garbage truck is simple, beautiful and generous in appearance, with excellent performance and advanced control, which is the most practical and popular garbage compressor and transfer product in the market. The top part is composed of sealed compression box, filler, shovel, hydraulic transmission system and electrical control system, using the market-tested hydraulic transmission, electrical control and two-way compression technology, through the automatic control system, to achieve the dumping of garbage, strong extrusion, two-way pressure filling, with the advantages of high pressure, good sealing, convenient operation, safety and stability, etc., mainly for municipal sanitation, enterprises and factories, construction sites, communities and materials. construction site, community property
It is mainly applied to the collection and transfer of domestic garbage in municipal sanitation, enterprises and factories, construction sites, communities, institutions and colleges.
| Model: | CLW5070ZYSQ3 | Volume: | 5000L-8000L |
| Total Weight: | 7300kg | Curb Weight: | 5300kg |
| Size of Outter: | 6650*2050*2750(mm) | Loading position： | Rear end loading |
| WheelBase: | 3360mm | Tire Size: | 7.00R16 |
| Transmission: | 5-Speed | Tire Number: | 6+1 |
| Front/Rear Axle: | 2-2.5T/4-4.8T | Brake System: | Air Brake |
| Fuel Type: | Diesel | Emission Standard: | Euro 6 |
| Engine Model: | 4KH1CN6LB | Power: | 88kw/120HP |
| Displacement: | 3707ml |
| Standard Equipments: |
| The upper part of the box is equipped with an arc-shaped box, and the bottom plate is seamlessly welded with folded edges, eliminating the risk of leakage. Tail filler, mainly used for garbage loading, tail bucket hanging mechanism, and various types of garbage loading. The electronic control system is equipped with one button unloading and automatic lifting function. Hydraulic oil tank, back pressure valve/compaction valve, balance valve, rear lighting, power take-off, multi way directional valve, and drain outlet of vehicle rear filler are made of galvanized material, which can effectively prevent corrosion of the drain outlet caused by long-term sewage discharge and are durable. |
