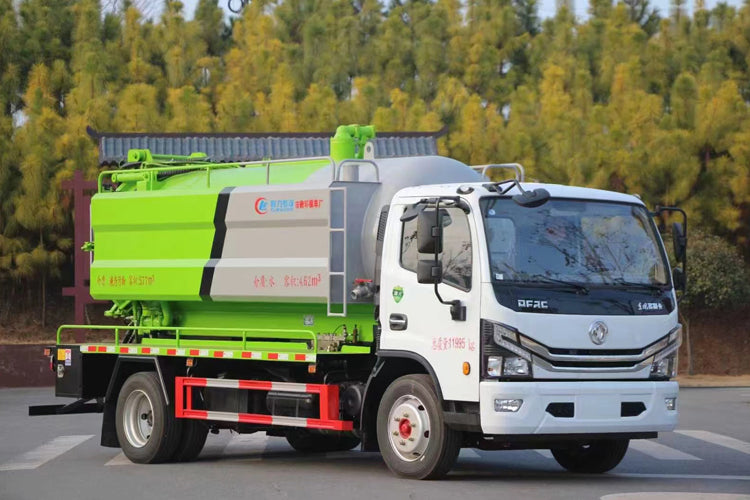

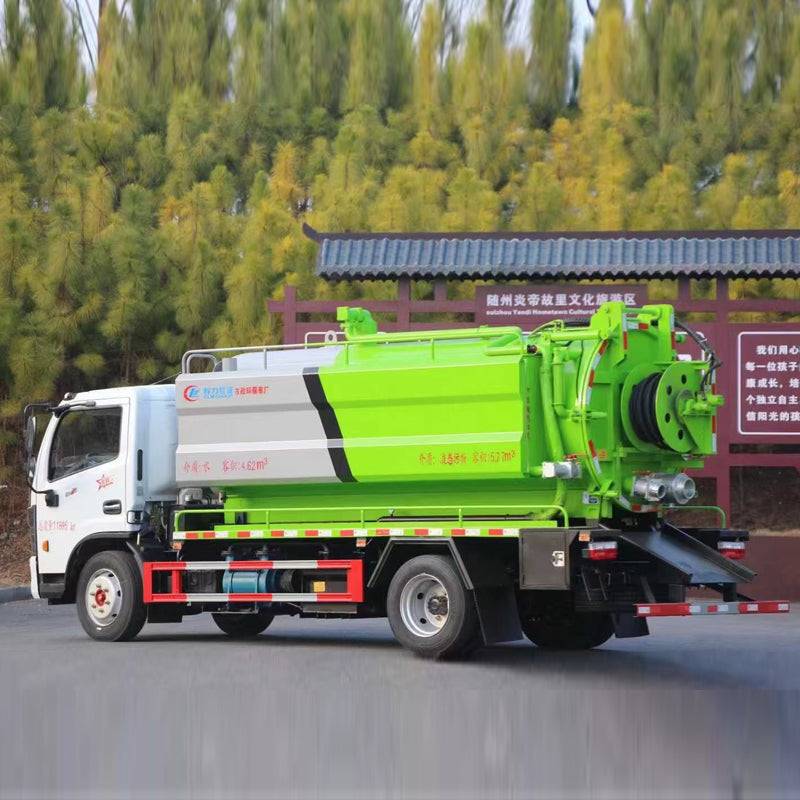

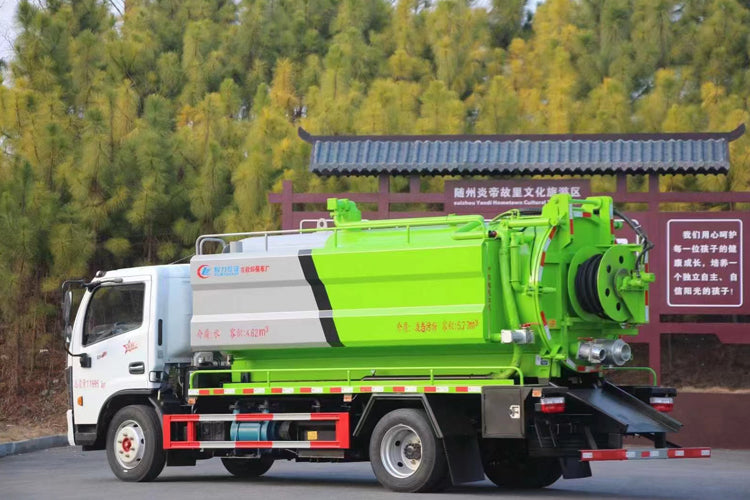

sludge transport truck set washing, dredging, suction, reverse discharge function in one, the suction part is used in various liquid, semi-liquid (such as: Septic tank, sewer, rain well, inspection well, sediment well silt and about 10mm rocks), as well as all kinds of ditches below the sludge, feces, wastewater and other media suction, loading, discharge, sludge transport truck can also be used for emergency treatment of sudden environmental pollution accidents, Can also be used with residential, engineering, schools, farms and other places of septic tanks, sewage suction work, or for site mud cleaning transfer, oil refinery and so on a variety of work.
Model : |
CL5120GQWZH3 |
Clean water tank | 4000L |
Total Weight: | 11995kg |
Waste tank
|
7000L |
Curbe Weight: | 4400kg | Size of Outter: |
7300×2300×2530 |
Number of axes: | three | WheelBase: | 3800mm |
Tire Size: | 8.25R20 | Transmission: | 5-Speed |
Front/Rear Axle: | 2T/4T | Brake System: | Air Brake |
Model : |
EQ1125SJ3CDC |
Emission Standard: | Euro 6 |
Fuel Type: | Diesel | Power: | 170kw/125HP |
Displacement: | 3856ml |
Maximum speed |
103km |
sludge transport truck and cleaning tank belt interworking function, standard with a toolbox, a 100 suction port, a 100 sewage discharge port (with ball valve afterloading rod) sewage tank top installation anti-overflow valve, vacuum pump air inlet installation of two stainless steel filter net, after high pressure coil triangle type double plug bolt fixed, stable and reliable, coil thickened, with shower (high pressure pipe operation, When recycling, you can wash the high-pressure pipe)
